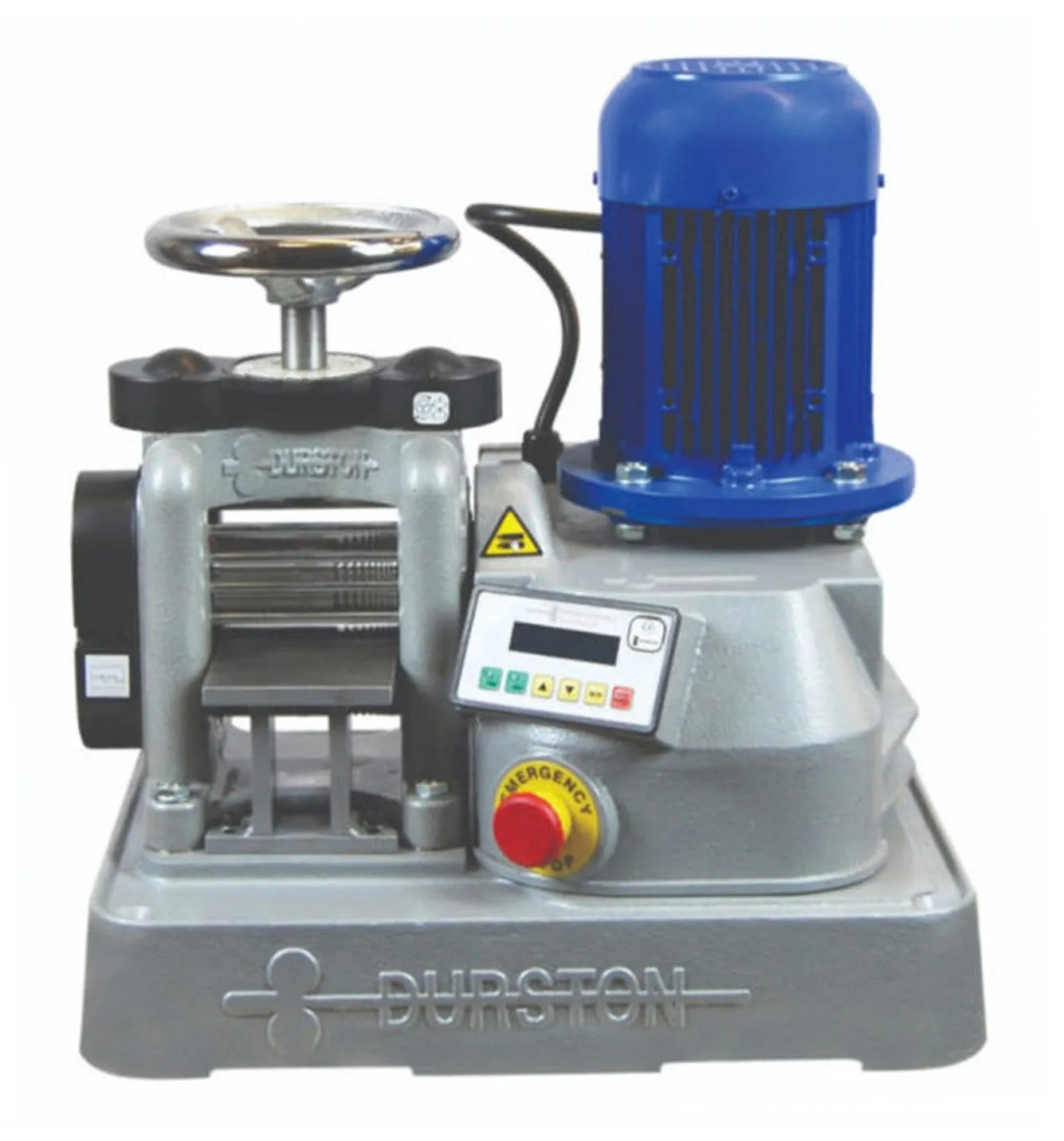

Rolling mills are designed to gradually reduce metal stock thicknesses to achieve the exact gauge size for your work. Durston Rolling Mills are compact, yet have everything you need to form metals. Constructed from cast iron for optimal strength and rigidity, the W130 is a powered grooved rolling mill for wire rolling; side extensions also enable half round milling. The 1.1KW motor is powerful enough for continuous operation which is why Durston Tools mills have such a long working life. This versatile package has variable speeds from 5 to 20 RPM and a highly efficient, near-silent operation. The rolls are especially induction hardened to 64RC; the main barrel has 19 square grooves for wire rolling from 10 mm to 1 mm. Side extension rollers provide a total of four half-rounds of 4, 3, 2, and 1.5 mm. Safety features include an emergency stop button, safety bars at the front and rear of the mill, guards covering the extension rollers, as well as guards covering the top gear. Part of Durston Tools award-winning range of products available since 1961. We highly recommend that your Durston Tools rolling mills are securely fastened down for safety. Freight shipping required, please contact us at (855) 298-7627 for pricing.Additional Details & Information:
Dimensions: 500 mm long x 390 mm wide x 540 mm high
Roller Type: Wire
Number of Grooves: 11
Voltage: 110V
Range: DRM-Powered
Side Extensions: 4, 3, 2, & 1.5 mm
Roller Measurements: 65 mm in diameter x 130 mm long
Maximum Wire Capacity: 8 mm
